Dettagli:
Termini di pagamento e spedizione:
|
| Dimensione del gabinetto: | WXDXH = 600x600x1200mm (può essere personalizzato) | Spazio interno: | 19 '' rack standard, spazio 20U |
|---|---|---|---|
| Materiale: | Foglio zincato | Capacità di potenza: | 18KW |
| Modulo rettificatore: | 6pcs 3KW | Metodo di raffreddamento: | Condizionatore d'aria o sistema di ventilatore forzato |
| Grado IP: | IP55 | Confezione: | Cassa in legno |
| Evidenziare: | Outdoor Telecom Cabinet with DC power,18kW Telecom Power System cabinet,Telecom Equipment Cabinet with rectifiers |
||

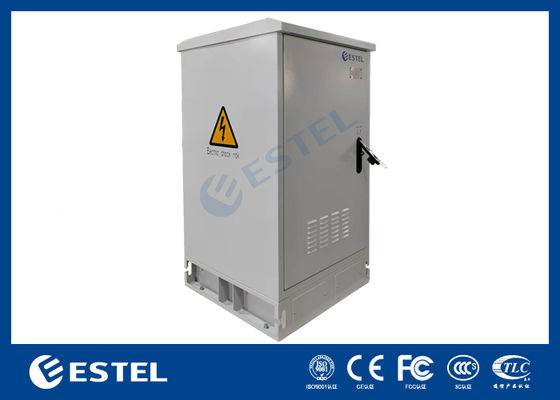

Outdoor Telecom Cabinet With 18kW Telecom Power System, DC Power Supply Rectifiers Telecom Equipment Cabinet
1. Introduction
ET6565100A-18kW is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.
2. Applications
This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
3. Cabinet Features

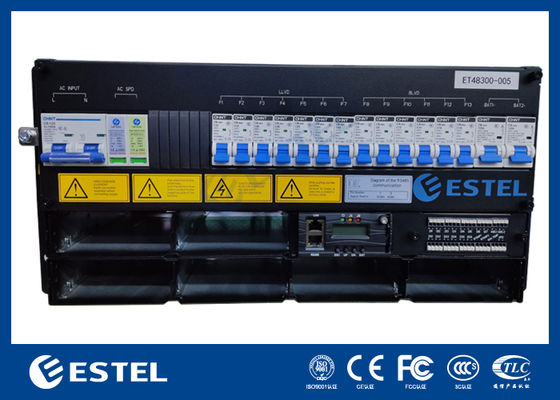

3. Rectifier Power System Features
- LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P;
- BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P;

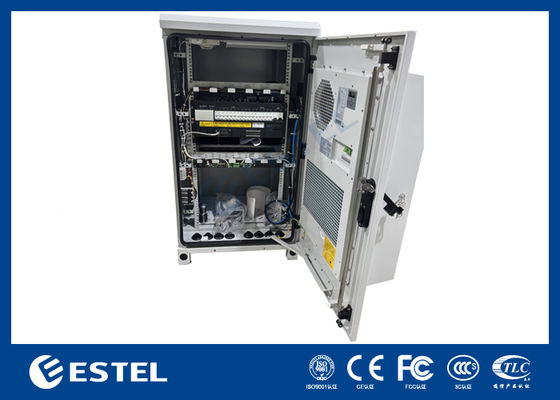

4. Cooling System Features
Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.
5. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6565100A-16U (6U/18kW) |
| Protection Level | IP55 | |
| External Dimension | H 1000 mm×W 650 mm×D 650 m (Can be customized) | |

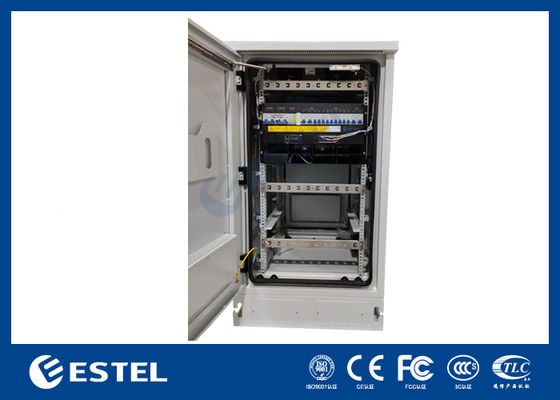

| Internal Dimension | 19 inch 16U | |
| Material | Galvanized steel, 1.2 mm thickness, single wall. | |
| Thickness of bearing parts: 2.0 mm | ||
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | one front door and one rear door | |
| Cooling System | Air conditioner | 1000W (Optional) |
| Fan | 2pcs fan with one fan controller | |
| Input Voltage | AC220V 60Hz | |
| Door sensor | Door sensor | |
| Temper sensor | Temper sensor | |
| Rectifier system | Rectifier system | 18kW, 19" rack mount, 6U Rectifier System: |
| 6pcs 3kW rectifier modules | ||
| 1x Monitoring Controller Module, SNMP communication port | ||
| Power distribution: | ||
| LLVD: 3x 63A/1P, 2x 40A/1P, 4x 32A/1P | ||
| BLVD: 2x16A/1P, 2x 10A/1P, 4x 6A/1P | ||
| LED Lamp | LED lamp for illumination with switch, Voltage: AC220V, 60Hz. | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
